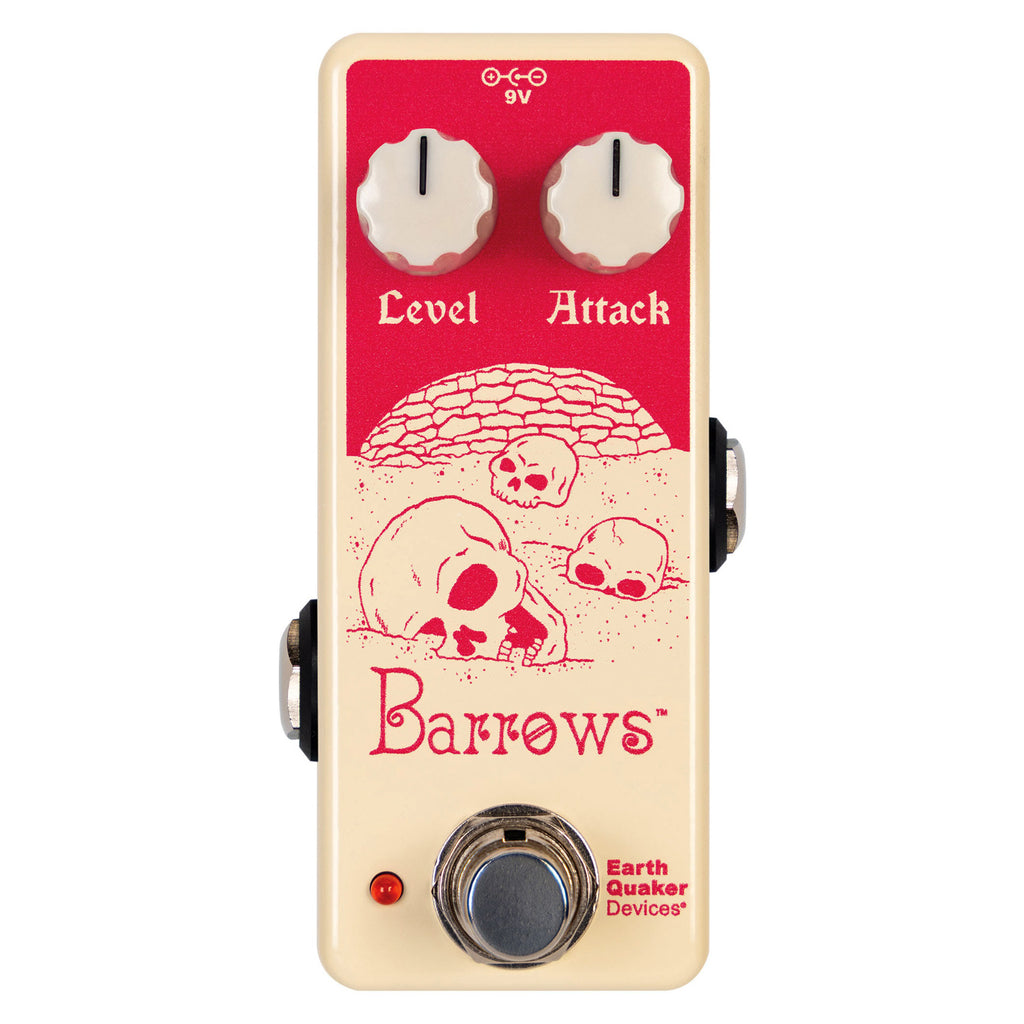

Earthquaker Barrows Fuzz Attacker Effects Pedal - BARROWS

EarthQuaker Devices Barrows
A portal to the legendary TB MkII fuzz circuit

Overview

Greetings, tone archaeologists and fuzz disciples! The Barrows is a tribute to one of the most revered and mystical circuits in the pantheon of guitar effects—the classic three-transistor TB MkII. This germanium-driven masterpiece brings the crushing riffs and walls of sound that defined generations of rock, while adding modern refinements that make it a powerful tool for today’s players.

From dawn-of-metal dirges to shoegaze symphonies, the MkII has been the foundation of countless sonic monuments. With Barrows, you can channel that same lightning-in-a-bottle magic while enjoying the reliability and versatility of modern craftsmanship.

Key Features

• Matched Germanium Transistors: Carefully selected for authentic, harmonically rich sustain and fuzz character.
• Classic Meets Modern: Delivers signature mid-focused tones with low-end authority and top-end grind, plus added stability and versatility.
• Phase-Corrected Output: Buffered for compatibility with other pedals and higher output volume.
• Compact Pedalboard Footprint: Big fuzz tones in a space-saving design.
• Modern Power: Standard 9V DC negative center operation—no more positive-ground quirks.
• True Bypass Switching: Pristine signal when disengaged.

Controls

• Level: Sets output volume. Unity gain around noon, with extra boost to push amps into overdrive.
• Attack: From amp-like distortion at low settings to massive, sustain-heavy fuzz at max.

Pro Tips

• Place Barrows first in your signal chain for best results—its low input impedance works best when fed directly by your guitar.
• Use your guitar’s volume knob to control gain. Roll back for cleans, dig in for crushing fuzz.

Specifications

• Input Impedance: 10K
• Output Impedance: 100R
• Power: 9V DC only (2.1mm negative center barrel)
• Current Draw: 10mA
• Dimensions (Boxed): 4.75 x 3.25 x 2.25 in / 12.065 x 8.255 x 5.715 cm
• Dimensions (Out of Box): 3.75 x 2 x 1.75 in / 9.525 x 5.08 x 4.445 cm
• Weight (Boxed): 0.485 lbs / 0.2199 kg
• Weight (Out of Box): 0.355 lbs / 0.161 kg

Lovingly assembled by hand (and one obedient robot) in Akron, Ohio, USA, the Barrows captures the essence of the TB MkII fuzz circuit while giving players a reliable, modern tool for unleashing walls of harmonics and sustain.
