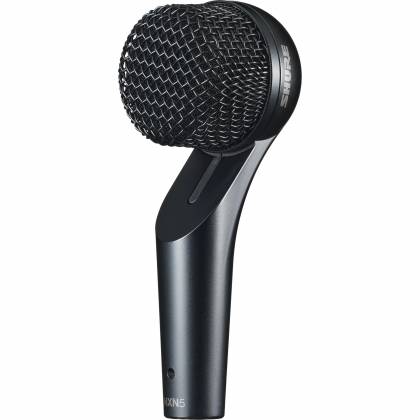

Shure NexaDyne Instrument Amplifier Microphone - NXN5

Shure NXN5 Nexadyne
5 Dynamic Guitar Amp Microphone

The Shure NXN5 is a premium dynamic microphone specifically engineered for guitar amplifier applications in live performance environments. Part of the cutting-edge Nexadyne™ series, the NXN5 utilizes patented Shure Revonic™ Dual-Engine Transducer Technology—two meticulously calibrated transducers working in tandem to deliver studio-grade detail, exceptional clarity, and unmatched consistency on stage.

Designed for professional touring and demanding live setups, the NXN5 captures the full tonal range of electric guitars with precision, ensuring your sound cuts through the mix with authority. Its compact dynamic cartridge is optimized for close-miking guitar amps, providing tight, focused audio while handling high sound pressure levels with ease.

With a tailored supercardioid polar pattern, the NXN5 offers superior off-axis rejection, minimizing bleed from surrounding instruments and stage noise. Its rugged die-cast aluminum body with a discreet matte black finish blends seamlessly into stage setups and withstands the rigors of travel and performance.

Whether you're performing in a club, arena, or festival stage, the Shure NXN5 is built to deliver consistent, high-quality results every night.

Key Features:

• Revonic™ Dual-Engine Transducer Technology: Two dynamic elements working together to enhance signal clarity and eliminate unwanted vibrations for superior sonic precision.

• Supercardioid Polar Pattern: Exceptional off-axis rejection, ideal for high-gain stage environments.

• Tailored for Guitar Amps: Tuned frequency response (50 Hz–16 kHz) highlights the full tonal character of electric guitar amplifiers.

• Compact and Durable: Rugged die-cast aluminum construction with a low-profile black finish for a clean stage presence.

• Road-Ready Accessories: Includes the A25E mic clip and zippered storage pouch for easy transport and setup.

Specifications:

• Microphone Type: Dynamic (moving coil) with secondary vibration-cancelling transducer

• Polar Pattern: Supercardioid

• Frequency Response: 50 Hz – 16 kHz

• Output Impedance (@1 kHz): 335 Ohms

• Sensitivity (@1 kHz, open circuit): -61.0 dBV/Pa (0.9 mV/Pa)

• Polarity: Positive pressure on the diaphragm produces positive voltage on pin 2 (relative to pin 3)

• Connector: 3-pin XLR, male

• Housing: Die-cast aluminum with black paint

• Weight: 295 g (0.65 lbs.)

Included in the Box:

• Shure NXN5 Dynamic Guitar Amp Microphone

• A25E Microphone Clip

• Zippered Pouch

Elevate Your Live Guitar Sound

The Shure NXN5 is a must-have for guitarists and engineers who demand premium quality and reliability. With its modern dual-transducer design and precision-tuned performance, it brings out the best in your amp, every time you hit the stage.
