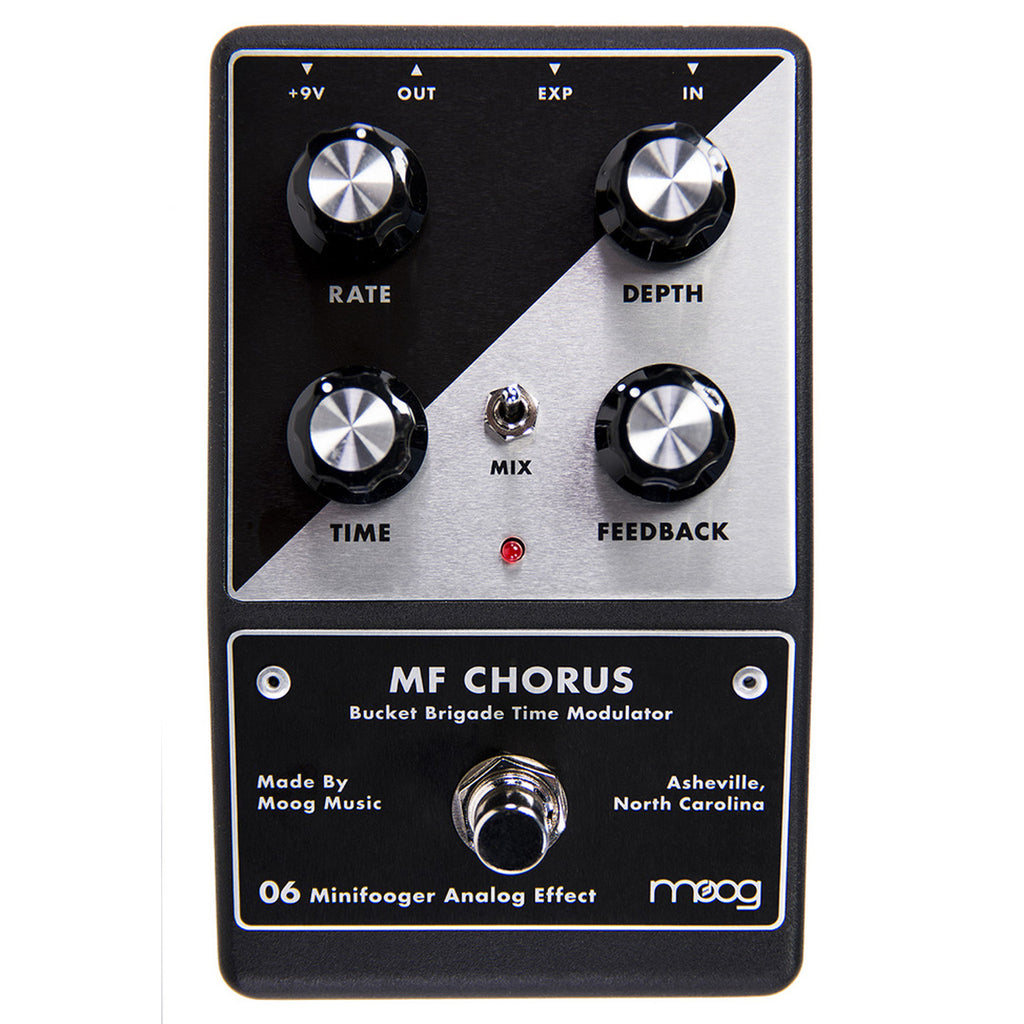

USED SPECIAL! Moog Minifooger Analog Chorus Pedal - USDMFCHORUS

USED SPECIAL! Moog MF Chorus
Analog Time Modulation Pedal

Authentic Moog analog chorus and vibrato with expressive depth and stereo versatility

The Moog MF Chorus from the revered Minifooger Series delivers lush, immersive modulation powered by a 100% analog bucket-brigade (BBD) delay circuit. Designed for musicians who crave warmth, texture, and motion in their sound, the MF Chorus captures the essence of Moog’s analog legacy in a pedalboard-friendly format. From smooth vibrato to rich stereo chorus, it offers a vast sonic range that transitions effortlessly into modulated slapback delays and echo-like textures — all under your expressive control.

Key Features

• 100% Analog Signal Path – True Moog BBD-based modulation delivers authentic vintage tone with organic warmth and depth.
• Multi-Mode Mix Control – Switch between open, natural chorus; thick, warm mid-blend; or pure vibrato (wet signal only) for a wide range of textures.
• Time and Feedback Controls – Shape the modulation character from subtle motion to multi-octave slap delay with evolving resonance and echoes.
• Depth and Rate Interaction – Create everything from gentle chorus sweeps to rotary-style spins and high-speed vibrato shimmer.
• Expression Pedal Input – Assignable to Rate, letting you sweep from slow analog motion to extreme, audio-rate modulation for experimental sound design.
• Mono or Stereo Output Modes – Switchable internal mode allows lush stereo imaging or classic mono operation via TRS splitter or insert cable.
• True Bypass Switching – Preserves your tone when the effect is disengaged, ensuring pure analog clarity.
• Compact, Cast Aluminum Enclosure – Built to endure studio sessions and touring environments alike.

Specifications

• Signal Path: 100% Analog BBD
• Bypass Type: True Bypass
• Power: 9VDC (battery or adapter, sold separately)
• Current Draw: 16mA nominal / 20mA max
• Delay Time: <3.2ms – 60ms (2ms – 70ms with modulation)
• LFO Rate: 0.05Hz – 13Hz (up to 25Hz with expression)
• LFO Shape: Exponentiated Triangle
• Expression Input: Controls Rate (+5VDC max)
• Input Impedance: >1 MΩ
• Output Impedance: 1 kΩ
• Max Input Level: +7.5 dBμ
• Max Output Level: +10 dBμ
• Output (Stereo Mode): Left (Mono) = Dry + Wet / Right = Dry – Wet
• Dimensions (DxWxH): 5.75” x 3.25” x 2.25” (14.4 x 8.3 x 5.8 cm)
• Weight: 18 oz. (0.5 kg)
• Enclosure: Cast Aluminum

Why Choose the Moog MF Chorus

The MF Chorus stands apart from digital modulation pedals by offering genuine analog movement, rich harmonic complexity, and hands-on musicality. Whether you’re chasing classic lush chorus tones, pitch-shifting vibrato, or pushing boundaries with modulated slapback delay, this pedal delivers with unmistakable Moog warmth. Add an expression pedal, and the MF Chorus becomes a living, breathing instrument — one that evolves dynamically with your touch and expression.
