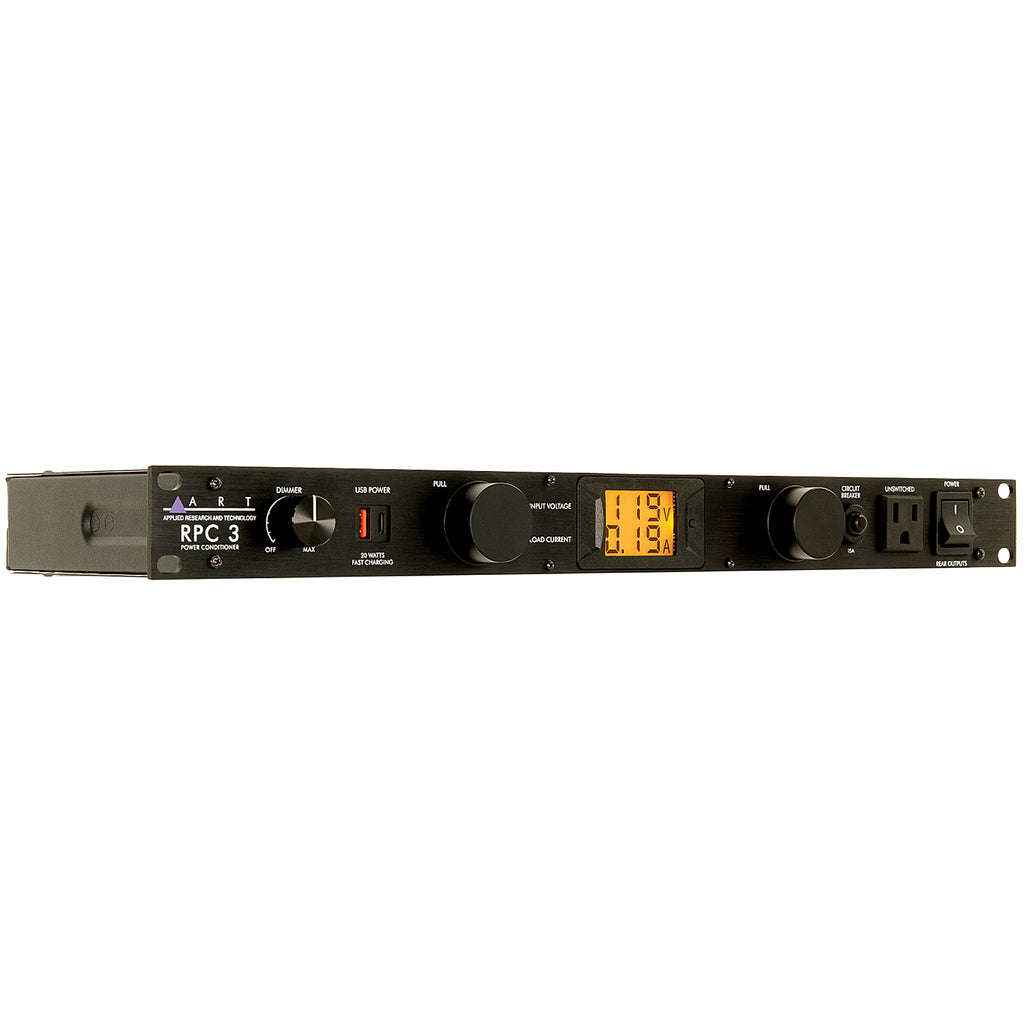

ART RPC3 1U Rackmount Power Conditioner w/LED Lamps - RPC3

ART RPC3 1U Rackmount Power Conditioner w/LED Lamps

Advanced rack power protection with isolated outlet banks, dual filtering and pull-out LED lighting

The ART RPC3 is the most fully featured model in the RPC series, combining power distribution, advanced filtering, voltage protection and rack illumination in a single 1U chassis. It is designed for studio, touring and installed systems where clean power, monitoring and protection are especially important.

Features

The RPC3 groups its rear outlets into two isolated banks and applies dual EMI, RFI, common-mode and differential-mode filtering for additional separation and noise control. Overvoltage and undervoltage protection add another layer of system safety, while digital output voltage and current meters make operating conditions easy to monitor. Two pull-out LED lamps with a switch and dimmer illuminate the front of a rack, and USB-A plus USB-C ports provide convenient charging.

Specifications

• Power Capacity: 1800 W
• Circuit Breaker: 15 A
• Rear AC Outlets: 8, grouped into 2 isolated banks
• Front AC Outlet: 1 unswitched
• USB: 1 USB-A and 1 USB-C
• USB Output: 5 V / 3 A, 20 W max
• Protection: Spike, surge, overvoltage and undervoltage
• Filtering: Dual EMI, RFI, common mode and differential mode
• Meters: Output voltage and current
• Lights: 2 front pull-out LED lamps with switch and dimmer
• Power Requirements: 120 V, 60 Hz
• Power Connector: Rear-mounted IEC
• Chassis: All-steel 1U rackmount with aluminum front plate
• Dimensions: 1.75 x 19 x 6 inches
• Weight: 5.5 lb

Why you should choose the ART RPC3 1U Rackmount Power Conditioner

The RPC3 is the right choice when you want the highest level of protection and convenience in the RPC range. Isolated outlet banks, dual-stage filtering, voltage protection, digital metering and dimmable pull-out lights make it especially well suited to serious rack systems used on stage, in studios or in permanent installations.
