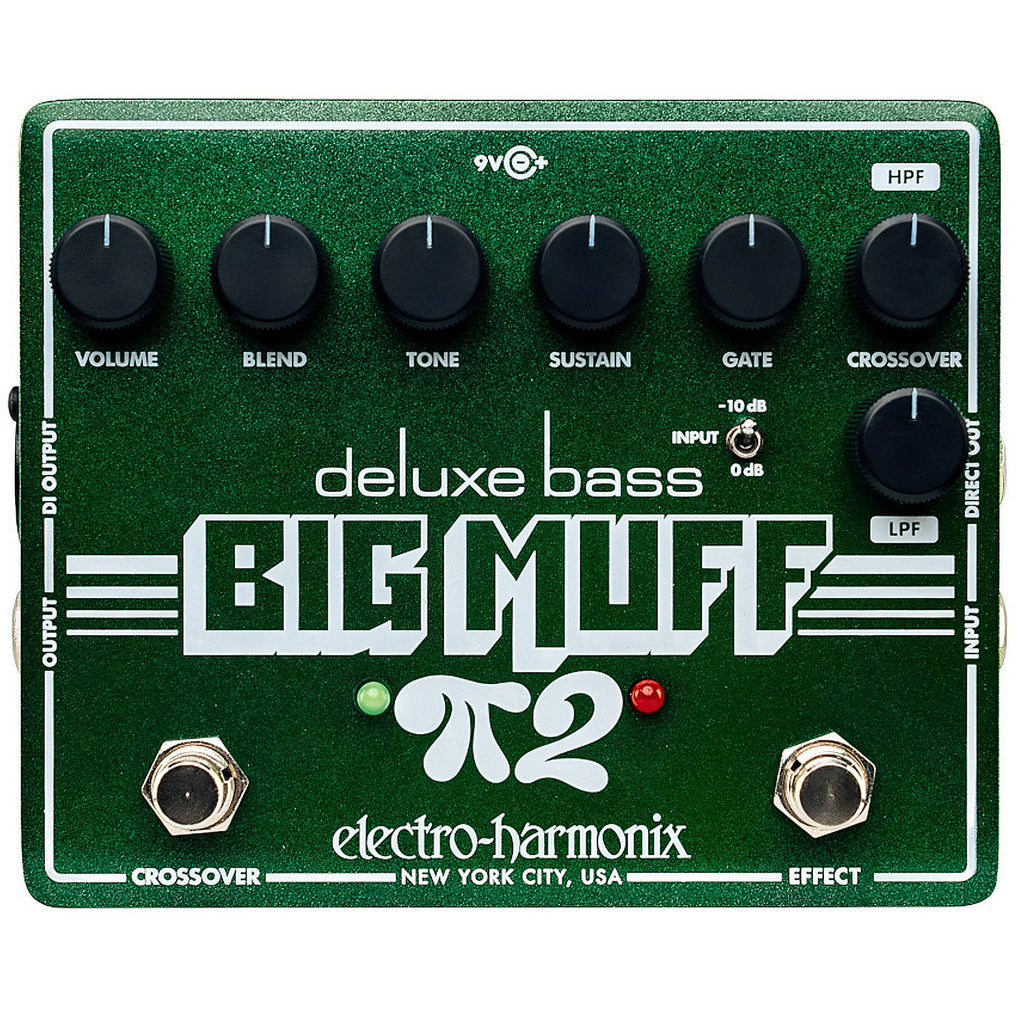

ElectroHarmonix Deluxe Bass Big Muff Pi 2 Fuzz Bass Effects Pedal - DLXBBM2

Electro-Harmonix Deluxe Bass Big Muff Pi 2
Fuzz Bass Effects Pedal

Expanded dual op-amp Big Muff bass fuzz with deep tone shaping and pro I/O

Overview

The Electro-Harmonix Deluxe Bass Big Muff Pi 2 takes the once-lost dual op-amp Big Muff 2 design and expands it into a full-featured bass fuzz workstation. Built for players who want huge sustain, aggressive fuzz texture and serious low-end authority, this Deluxe version gives bassists far more control over how clean and distorted signals interact. From thick, grinding drive to earthshaking fuzz that still keeps your fundamental intact, it is designed to deliver massive Big Muff character without sacrificing the weight and clarity of your bass.

Features

At the heart of the Deluxe Bass Big Muff Pi 2 is a Big Muff Pi circuit design using two dual op-amps, giving it the saturated sustain and bold fuzz voice that made this style of circuit so sought after. The familiar Volume, Tone and Sustain controls make it easy to dial in output, EQ shape and fuzz intensity, while the Blend knob lets you mix the effected signal with your clean bass tone so your low end stays present and powerful.

The Crossover section gives this pedal much deeper tone-shaping potential than a standard fuzz. It splits the signal and applies high-pass and low-pass filtering, letting you control what part of the signal hits the fuzz circuit and what part stays cleaner underneath. The HPF control shapes the high-passed signal before it reaches the fuzz, while the LPF control adjusts the low-passed clean signal, giving you a more focused way to build aggressive fuzz sounds without turning your bass into a muddy wall of noise.

For stage, studio and pedalboard use, Electro-Harmonix adds the practical upgrades that make this a true Deluxe model. A selectable -10dB input pad helps manage high-output pickups, the DI output provides a low-impedance XLR feed of the effected signal, and the Direct Out gives you a buffered version of your clean original signal for parallel routing. Buffered bypass, latching or momentary footswitch operation and the included 9.6VDC power adapter make it flexible, dependable and ready for serious bass rigs.

Specifications

• Pedal Type: Bass fuzz / distortion / sustainer
• Circuit: Big Muff Pi design using two dual op-amps
• Controls: Volume, Tone, Sustain, Blend, HPF and LPF
• Crossover: Splits the signal with high-pass and low-pass filtering
• Input Pad: Selectable -10dB attenuation for high-output pickups
• DI Output: Low-impedance XLR output of effected signal
• Direct Out: Buffered output of clean original signal
• Bypass: Buffered bypass
• Footswitch Action: Latching or momentary
• Power: 9.6VDC / 200mA power adapter included
• Unboxed Dimensions: 5.75 inches x 4.75 inches x 2.5 inches
• Shipping Weight: 1.6 lb
• Shipping Dimensions: 8 inches x 7 inches x 3.5 inches

Why you should buy this

The Deluxe Bass Big Muff Pi 2 is built for bassists who want the enormous sound of Big Muff fuzz but need the control to keep their tone musical, powerful and mix-ready. The Blend control helps preserve your clean foundation, while the Crossover section lets you sculpt how the fuzz and clean signals work together. Add the input pad, XLR DI, Direct Out and momentary footswitch option, and this becomes far more than a simple fuzz pedal - it is a powerful bass tone-shaping tool for players who want huge gain without losing the authority of the instrument.
