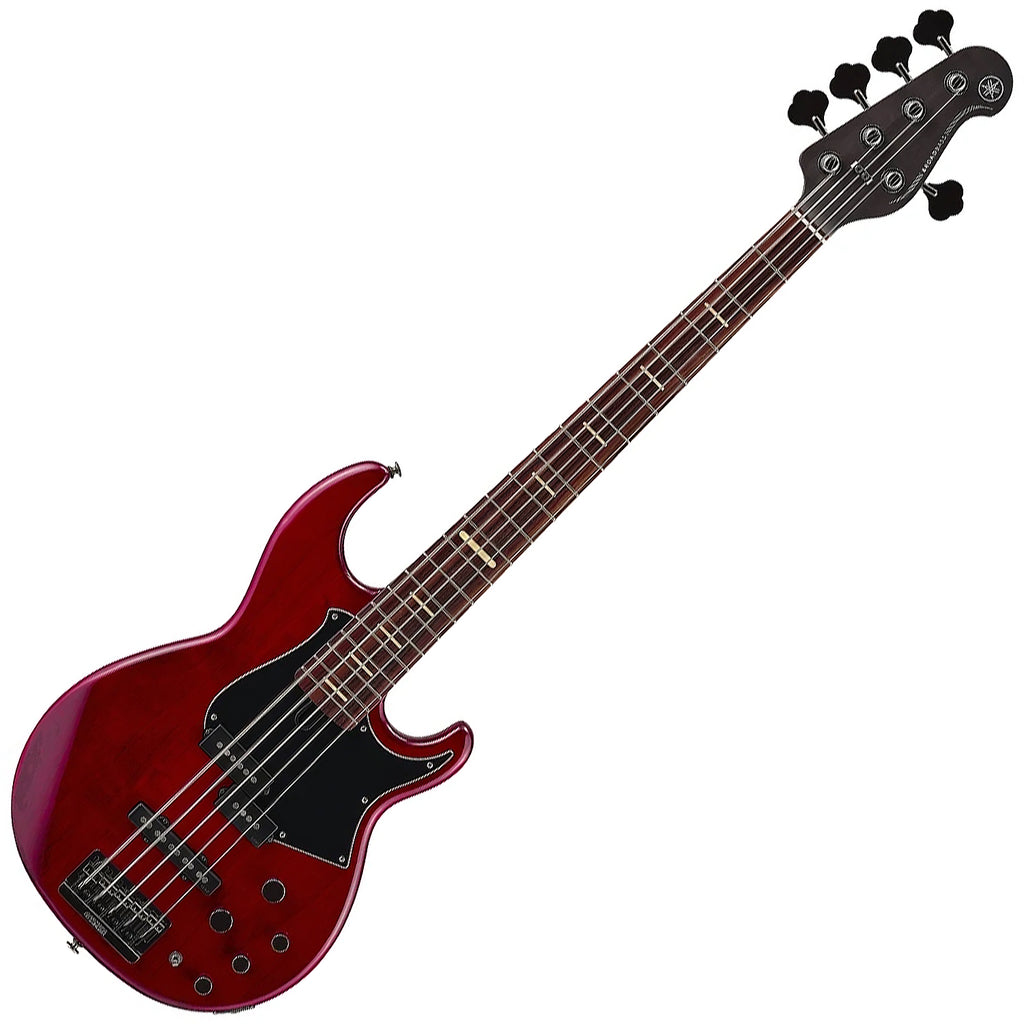

Yamaha 5 String Electric Bass PJ Rosewood in Fired Red w/Gig Bag - BB735AFRD
Reserve one now. We will contact you with an estimated delivery date. Questions? Contact us here.
- DETAILS
Yamaha BB735A 5 String Electric Bass
Professional 5-string electric bass with active/passive electronics, 6-bolt miter neck joint and versatile V7 pickups
The Yamaha BB735A 5 String Electric Bass is built for working players who need dependable performance, flexible tone and strong stage-ready construction. Its alder/maple/alder body, 6-bolt miter neck joint and 5-piece maple/mahogany neck work together to deliver excellent resonance, sustain and note definition, while Yamaha’s YGD Custom V7 pickups and active/passive 3-band EQ provide a wide range of tones for live, studio and rehearsal use.
Features
The BB700 Series is designed for players who need an instrument that can adapt to different genres, venues and recording situations. The combination of active and passive operation gives the BB735A the flexibility to move from clear, modern definition to more traditional passive bass character with a simple switch.
The alder/maple/alder body construction uses a hard maple center section to increase body stiffness, enhance midrange presence and improve the transfer of vibration between the neck and body. This helps the bass cut through a band mix while maintaining strong sustain and resonance.
Yamaha’s 6-bolt miter neck joint pulls the neck tightly into the body for more efficient vibration transfer than a conventional bolt-on design. The 5-piece maple and mahogany neck adds strength and stability while combining quick maple attack with the warmth of mahogany.
YGD Custom V7 pickups use Alnico V magnets to produce a thick, well-defined tone with strong articulation. The split-coil neck pickup and single-coil bridge pickup work with the pickup balancer and active 3-band EQ to cover a wide range of sounds.
The active/passive circuit has been tuned for smooth level matching between modes, with the treble control converting to a master passive tone control when the bass is switched to passive operation. Gold-plated signal contacts improve conductivity and reliability, while a rear-panel battery alert LED provides advance warning of low battery power.
The Vintage Plus bridge allows either bridge-through or body-through stringing. Body-through strings pass through at a 45-degree angle to reduce string stress while maintaining strong vibration transfer. Convertible brass saddles can also be positioned in two orientations to fine-tune response, with the rounder side producing a slightly softer sound and the more angled side providing a tighter response.
Specifications
- Instrument Type: 5 String Electric Bass
- Series: BB700
- Construction: Bolt-on with 6-bolt miter neck joint
- Scale Length: 34 inches / 863.6 mm
- Body Construction: Alder / maple / alder
- Neck Material: 5-piece maple / mahogany
- Neck Finish: Satin polyurethane
- Fretboard Material: Rosewood
- Fretboard Radius: 23 5/8 inches / 600 mm
- Frets: 21 medium frets
- Nut Material: Graph Tech
- Neck Width at Nut: 43.0 mm
- Neck Width at 12th Fret: 63.9 mm
- Neck Thickness at 1st Fret: 20.5 mm
- Neck Thickness at 12th Fret: 22.5 mm
- Neck Pickup: Yamaha VSP7n split single-coil with Alnico V magnets
- Bridge Pickup: Yamaha VSC7b single-coil with Alnico V magnets
- Controls: Master volume, pickup balancer, bass, middle, treble and active/passive switch
- EQ: 3-band active EQ
- Passive Mode: Treble control functions as master passive tone
- Battery Alert: Rear-panel low-battery LED
- Bridge: Vintage Plus with convertible bridge/body stringing
- Bridge Saddles: Convertible brass saddles
- Bridge Plate: Steel
- String Spacing: 18 mm
- Tuning Machines: Lightweight open-gear tuners
- String Gauge: D'Addario EXL170-5, .045-.130
Why you should choose the Yamaha BB735A 5 String Electric Bass
The Yamaha BB735A 5 String Electric Bass is a strong choice for players who want professional-level versatility, solid construction and dependable tone in a 5-string platform. Its active/passive electronics, V7 pickups, 6-bolt miter neck joint and convertible bridge give it the flexibility to handle everything from warm traditional bass tones to articulate modern sounds. For players who need one bass that can move confidently between rehearsals, studio work and live performance, the BB735A is built to deliver.
